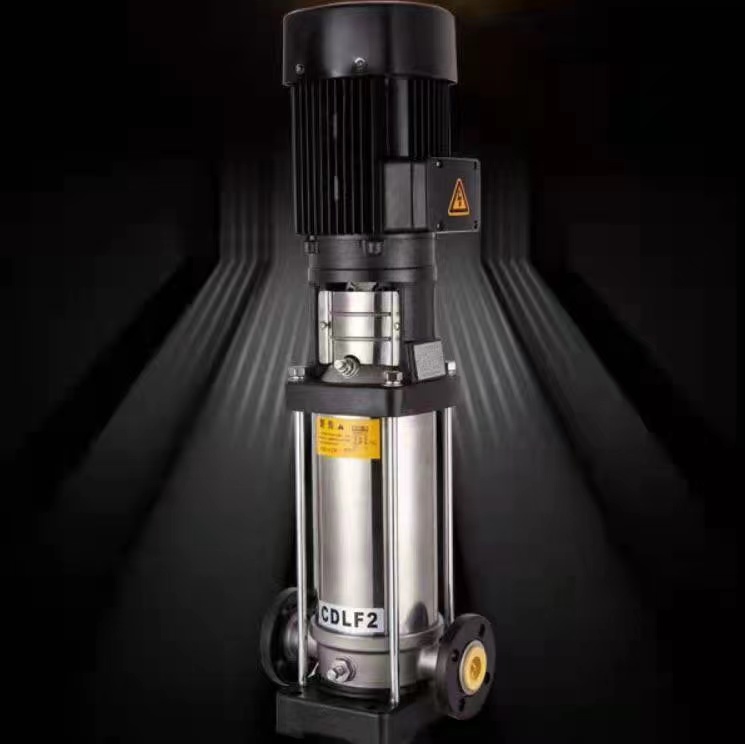

点击图片查看原图
CDLF轻型不锈钢立式多级离心泵是吸取了国内外先进技术而设计制造的非自吸立式多级离心泵，采用标准立式电机和快装式机械密封，更换非常方便。
CDLF轻型不锈钢立式多级离心泵的过流部分均采用不锈钢（304\316）材料制成，可适用于轻度腐蚀性介质。该产品可替代国外CR、CRN等同类产品。产品投放市场后，以其高效节能、质量可靠、使用范围广等特点，深受广大用户的喜爱。
CDLF轻型不锈钢立式多级离心泵其最大优点是水力模型设计先进，高效率，高节能。水泵内部叶轮、泵壳及其主要配件采用不锈钢冲压成形，流道特别光滑，轴瓦、轴套用硬质合金，具有超强的使用寿命，避免产生二次污染。轴封采用耐磨机械密封，无泄漏。电机采用Y2铅外壳，进口轴承，绝缘等级F级。泵运转平稳，低噪音，整机质量可靠，外形美观、体积小、重量轻、运输方便，是理想的绿色、环保、节能的水泵。
CDLF轻型不锈钢立式多级离心泵产品特征：
1、采用优良的水力模型和先进的制造工艺，大大提高泵的性能及使用寿命。
2、由于轴封采用材料为硬质合金及氟橡胶的机械密封，可提高泵运行的可靠性及输送介质的温度。
3、泵的过流部分采用不锈钢板冲压焊接而成，使得泵可适用于轻度腐蚀性介质。
4、整体结构紧凑、体积小、重量轻、噪声低、节能效果显著，检修方便。
5、泵的进水口与出水口位于泵座同一水平线上，可直接用于管路当中。
6、采用标准电机，用户可方便地根据需要配备电机。
7、可根据用户需要配备智能保护器，对泵干转、缺相、过载等进行有效保护。
CDLF轻型不锈钢立式多级离心泵产品用途：
供水：水厂过滤与输送、水厂分区送水、主管增压、高层建筑增压。
工业增压：流程水系统、清洗系统、高压冲洗系统、消防系统。
工业液体输送：冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸性和碱性介质输送。
水处理：超滤系统、反渗透系统、蒸馏系统、分离器和游泳池的水处理系统。
灌溉：农田灌溉、喷灌、滴灌。
CDLF轻型不锈钢立式多级离心泵输送介质：
1、稀薄、清洁、不含固体颗粒或纤维的非易燃易爆介质。
2、诸如矿泉水、软化水、纯水、清油和其他轻化工介质。
3、泵主要材料为不锈钢，可应用于抽送轻度腐蚀性介质。
CDLF轻型不锈钢立式多级离心泵技术参数：
流量：1-22m3/h；
扬程：6-232m；
功率：0.37-15kw；
转速：2900r/min；
口径：φ25-φ50；
温度范围：-15℃-+120℃；
工作压力：≤2.4Mpa。
CDLF轻型不锈钢立式多级离心泵型号意义:
CDLF轻型不锈钢立式多级离心泵结构图：
CDLF轻型不锈钢立式多级离心泵性能参数：
|
型号 |
扬程 |
流量 |
电机功率 |
转速 |
|
(m) |
(m3/h) |
(KW) |
(r/min) |
|
|
CDLF1-2 |
11.5 |
1 |
0.37 |
2900 |
|
CDLF1-3 |
17 |
1 |
0.37 |
2900 |
|
CDLF1-4 |
22.5 |
1 |
0.37 |
2900 |
|
CDLF1-5 |
28 |
1 |
0.37 |
2900 |
|
CDLF1-6 |
33.5 |
1 |
0.37 |
2900 |
|
CDLF1-7 |
39 |
1 |
0.37 |
2900 |
|
CDLF1-8 |
45 |
1 |
0.55 |
2900 |
|
CDLF1-9 |
51 |
1 |
0.55 |
2900 |
|
CDLF1-10 |
57 |
1 |
0.55 |
2900 |
|
CDLF1-17 |
95 |
1 |
1.1 |
2900 |
|
CDLF1-19 |
106 |
1 |
1.1 |
2900 |
|
CDLF1-21 |
117 |
1 |
1.1 |
2900 |
|
CDLF1-23 |
128 |
1 |
1.1 |
2900 |
|
CDLF1-25 |
139 |
1 |
1.5 |
2900 |
|
CDLF1-27 |
150 |
1 |
1.5 |
2900 |
|
CDLF1-30 |
166 |
1 |
1.5 |
2900 |
|
CDLF1-33 |
183 |
1 |
2.2 |
2900 |
|
CDLF1-36 |
200 |
1 |
2.2 |
2900 |
|
CDLF2-2 |
15 |
2 |
0.37 |
2900 |
|
CDLF2-3 |
22 |
2 |
0.37 |
2900 |
|
CDLF2-4 |
30 |
2 |
0.55 |
2900 |
|
CDLF2-5 |
37 |
2 |
0.55 |
2900 |
|
CDLF2-6 |
45 |
2 |
0.75 |
2900 |
|
CDLF2-7 |
52 |
2 |
0.75 |
2900 |
|
CDLF2-9 |
67 |
2 |
1.1 |
2900 |
|
CDLF2-11 |
82 |
2 |
1.1 |
2900 |
|
CDLF2-13 |
98 |
2 |
1.5 |
2900 |
|
CDLF2-15 |
112 |
2 |
1.5 |
2900 |
|
CDLF2-18 |
136 |
2 |
2.2 |
2900 |
|
CDLF2-22 |
165 |
2 |
2.2 |
2900 |
|
CDLF2-26 |
198 |
2 |
3.0 |
2900 |
|
CDLF3-2 |
9 |
3 |
0.37 |
2900 |
|
CDLF3-3 |
14 |
3 |
0.37 |
2900 |
|
CDLF3-4 |
19 |
3 |
0.37 |
2900 |
|
CDLF3-5 |
23 |
3 |
0.37 |
2900 |
|
CDLF3-6 |
28 |
3 |
0.55 |
2900 |
|
CDLF3-7 |
32 |
3 |
0.55 |
2900 |
|
CDLF3-8 |
37 |
3 |
0.75 |
2900 |
|
CDLF3-9 |
42 |
3 |
0.75 |
2900 |
|
CDLF3-10 |
47 |
3 |
0.75 |
2900 |
|
CDLF3-11 |
51 |
3 |
1.1 |
2900 |
|
CDLF3-12 |
55 |
3 |
1.1 |
2900 |
|
CDLF3-13 |
60 |
3 |
1.1 |
2900 |
|
CDLF3-15 |
69 |
3 |
1.1 |
2900 |
|
CDLF3-17 |
79 |
3 |
1.5 |
2900 |
|
CDLF3-19 |
88 |
3 |
1.5 |
2900 |
|
CDLF3-21 |
98 |
3 |
2.2 |
2900 |
|
CDLF3-23 |
107 |
3 |
2.2 |
2900 |
|
CDLF3-25 |
116 |
3 |
2.2 |
2900 |
|
CDLF3-27 |
124 |
3 |
2.2 |
2900 |
|
CDLF3-29 |
133 |
3 |
2.2 |
2900 |
|
CDLF3-31 |
142 |
3 |
3 |
2900 |
|
CDLF3-33 |
151 |
3 |
3 |
2900 |
|
CDLF3-36 |
168 |
3 |
3 |
2900 |
|
CDLF4-2 |
15 |
4 |
0.37 |
2900 |
|
CDLF4-3 |
24 |
4 |
0.55 |
2900 |
|
CDLF4-4 |
32 |
4 |
0.75 |
2900 |
|
CDLF4-5 |
40 |
4 |
1.1 |
2900 |
|
CDLF4-6 |
48 |
4 |
1.1 |
2900 |
|
CDLF4-7 |
56 |
4 |
1.5 |
2900 |
|
CDLF4-8 |
64 |
4 |
1.5 |
2900 |
|
CDLF4-10 |
81 |
4 |
2.2 |
2900 |
|
CDLF4-12 |
95 |
4 |
2.2 |
2900 |
|
CDLF4-14 |
112 |
4 |
3 |
2900 |
|
CDLF4-16 |
129 |
4 |
3 |
2900 |
|
CDLF4-19 |
153 |
4 |
4 |
2900 |
|
CDLF4-22 |
178 |
4 |
4 |
2900 |
|
CDLF8-2/1 |
9 |
8 |
0.75 |
2900 |
|
CDLF8-2 |
18 |
8 |
0.75 |
2900 |
|
CDLF8-3 |
27 |
8 |
1.1 |
2900 |
|
CDLF8-4 |
36 |
8 |
1.5 |
2900 |
|
CDLF8-5 |
45 |
8 |
2.2 |
2900 |
|
CDLF8-6 |
54 |
8 |
2.2 |
2900 |
|
CDLF8-8 |
73 |
8 |
3.0 |
2900 |
|
CDLF8-10 |
92 |
8 |
4.0 |
2900 |
|
CDLF8-12 |
111 |
8 |
4.0 |
2900 |
|
CDLF8-14 |
130 |
8 |
5.5 |
2900 |
|
CDLF8-16 |
148 |
8 |
5.5 |
2900 |
|
CDLF8-18 |
167 |
8 |
7.5 |
2900 |
|
CDLF8-20 |
186 |
8 |
7.5 |
2900 |
|
CDLF12-2 |
20 |
12 |
1.5 |
2900 |
|
CDLF12-3 |
30 |
12 |
2.2 |
2900 |
|
CDLF12-4 |
40 |
12 |
3 |
2900 |
|
CDLF12-5 |
50 |
12 |
3 |
2900 |
|
CDLF12-6 |
60 |
12 |
4 |
2900 |
|
CDLF12-7 |
70 |
12 |
5.5 |
2900 |
|
CDLF12-8 |
80 |
12 |
5.5 |
2900 |
|
CDLF12-9 |
91 |
12 |
5.5 |
2900 |
|
CDLF12-10 |
101 |
12 |
7.5 |
2900 |
|
CDLF12-12 |
121 |
12 |
7.5 |
2900 |
|
CDLF12-14 |
141 |
12 |
11 |
2900 |
|
CDLF12-16 |
162 |
12 |
11 |
2900 |
|
CDLF12-18 |
183 |
12 |
11 |
2900 |
|
CDLF16-2 |
22 |
16 |
2.2 |
2900 |
|
CDLF16-3 |
34 |
16 |
3.0 |
2900 |
|
CDLF16-4 |
46 |
16 |
4.0 |
2900 |
|
CDLF16-5 |
58 |
16 |
5.5 |
2900 |
|
CDLF16-6 |
70 |
16 |
5.5 |
2900 |
|
CDLF16-7 |
82 |
16 |
7.5 |
2900 |
|
CDLF16-8 |
94 |
16 |
7.5 |
2900 |
|
CDLF16-10 |
118 |
16 |
11 |
2900 |
|
CDLF16-12 |
141 |
16 |
11 |
2900 |
|
CDLF16-14 |
166 |
16 |
15 |
2900 |
|
CDLF16-16 |
189 |
16 |
15 |
2900 |
|
CDLF20-1 |
10 |
20 |
1.1 |
2900 |
|
CDLF20-2 |
23 |
20 |
2.2 |
2900 |
|
CDLF20-3 |
35 |
20 |
4.0 |
2900 |
|
CDLF20-4 |
47 |
20 |
5.5 |
2900 |
|
CDLF20-5 |
58 |
20 |
5.5 |
2900 |
|
CDLF20-6 |
70 |
20 |
7.5 |
2900 |
|
CDLF20-7 |
82 |
20 |
7.5 |
2900 |
|
CDLF20-8 |
94 |
20 |
11 |
2900 |
|
CDLF20-10 |
118 |
20 |
11 |
2900 |
|
CDLF20-12 |
142 |
20 |
15 |
2900 |
|
CDLF20-14 |
166 |
20 |
15 |
2900 |
|
CDLF20-17 |
202 |
20 |
18.5 |
2900 |
|
CDLF32-10-1 |
9 |
32 |
1.5 |
2900 |
|
CDLF32-10 |
13 |
32 |
2.2 |
2900 |
|
CDLF32-20-2 |
20 |
32 |
3.0 |
2900 |
|
CDLF32-20 |
27 |
32 |
4.0 |
2900 |
|
CDLF32-30-2 |
33 |
32 |
5.5 |
2900 |
|
CDLF32-30 |
40 |
32 |
5.5 |
2900 |
|
CDLF32-40-2 |
46 |
32 |
7.5 |
2900 |
|
CDLF32-40 |
53 |
32 |
7.5 |
2900 |
|
CDLF32-50-2 |
60 |
32 |
11 |
2900 |
|
CDLF32-50 |
67 |
32 |
11 |
2900 |
|
CDLF32-60-2 |
74 |
32 |
11 |
2900 |
|
CDLF32-60 |
81 |
32 |
11 |
2900 |
|
CDLF32-70-2 |
88 |
32 |
15 |
2900 |
|
CDLF32-70 |
95 |
32 |
15 |
2900 |
|
CDLF32-80-2 |
102 |
32 |
15 |
2900 |
|
CDLF32-80 |
109 |
32 |
15 |
2900 |
|
CDLF32-90-2 |
117 |
32 |
18.5 |
2900 |
|
CDLF32-90 |
124 |
32 |
18.5 |
2900 |
|
CDLF32-100-2 |
131 |
32 |
18.5 |
2900 |
|
CDLF32-100 |
138 |
32 |
18.5 |
2900 |
|
CDLF32-110-2 |
146 |
32 |
22 |
2900 |
|
CDLF32-110 |
153 |
32 |
22 |
2900 |
|
CDLF32-120-2 |
160 |
32 |
22 |
2900 |
|
CDLF32-120 |
167 |
32 |
22 |
2900 |
|
CDLF32-130-2 |
174 |
32 |
30 |
2900 |
|
CDLF32-130 |
181 |
32 |
30 |
2900 |
|
CDLF32-140-2 |
189 |
32 |
30 |
2900 |
|
CDLF32-140 |
196 |
32 |
30 |
2900 |
|
CDLF42-10-1 |
16 |
42 |
3.0 |
2900 |
|
CDLF42-10 |
20 |
42 |
4.0 |
2900 |
|
CDLF42-20-2 |
32 |
42 |
5.5 |
2900 |
|
CDLF42-20 |
41 |
42 |
7.5 |
2900 |
|
CDLF42-30-2 |
52 |
42 |
11 |
2900 |
|
CDLF42-30 |
61 |
42 |
11 |
2900 |
|
CDLF42-40-2 |
73 |
42 |
15 |
2900 |
|
CDLF42-40 |
81 |
42 |
15 |
2900 |
|
CDLF42-50-2 |
93 |
42 |
18.5 |
2900 |
|
CDLF42-50 |
101 |
42 |
18.5 |
2900 |
|
CDLF42-60-2 |
113 |
42 |
22 |
2900 |
|
CDLF42-60 |
122 |
42 |
22 |
2900 |
|
CDLF42-70-2 |
134 |
42 |
30 |
2900 |
|
CDLF42-70 |
142 |
42 |
30 |
2900 |
|
CDLF42-80-2 |
154 |
42 |
30 |
2900 |
|
CDLF42-80 |
162 |
42 |
30 |
2900 |
|
CDLF42-90-2 |
174 |
42 |
30 |
2900 |
|
CDLF42-90 |
183 |
42 |
37 |
2900 |
|
CDLF42-100-2 |
194 |
42 |
37 |
2900 |
|
CDLF42-100 |
203 |
42 |
37 |
2900 |
|
CDLF42-110-2 |
217 |
42 |
45 |
2900 |
|
CDLF42-110 |
225 |
42 |
45 |
2900 |
|
CDLF42-120-2 |
238 |
42 |
45 |
2900 |
|
CDLF42-120 |
247 |
42 |
45 |
2900 |
|
CDLF42-130-2 |
259 |
42 |
45 |
2900 |
|
CDLF65-10-1 |
13 |
65 |
4.0 |
2900 |
|
CDLF65-10 |
20 |
65 |
5.5 |
2900 |
|
CDLF65-20-2 |
26 |
65 |
7.5 |
2900 |
|
CDLF65-20-1 |
33 |
65 |
11 |
2900 |
|
CDLF65-20 |
40 |
65 |
11 |
2900 |
|
CDLF65-30-2 |
46 |
65 |
15 |
2900 |
|
CDLF65-30-1 |
53 |
65 |
15 |
2900 |
|
CDLF65-30 |
60 |
65 |
18.5 |
2900 |
|
CDLF65-40-2 |
66 |
65 |
18.5 |
2900 |
|
CDLF65-40-1 |
73 |
65 |
22 |
2900 |
|
CDLF65-40 |
80 |
65 |
22 |
2900 |
|
CDLF65-50-2 |
88 |
65 |
30 |
2900 |
|
CDLF65-50-1 |
95 |
65 |
30 |
2900 |
|
CDLF65-50 |
102 |
65 |
30 |
2900 |
|
CDLF65-60-2 |
110 |
65 |
30 |
2900 |
|
CDLF65-60-1 |
117 |
65 |
37 |
2900 |
|
CDLF65-60 |
124 |
65 |
37 |
2900 |
|
CDLF65-70-2 |
132 |
65 |
37 |
2900 |
|
CDLF65-70-1 |
139 |
65 |
37 |
2900 |
|
CDLF65-70 |
146 |
65 |
45 |
2900 |
|
CDLF65-80-2 |
154 |
65 |
45 |
2900 |
|
CDLF65-80-1 |
161 |
65 |
45 |
2900 |
|
CDLF85-10-1 |
14 |
85 |
5.5 |
2900 |
|
CDLF85-10 |
20 |
85 |
7.5 |
2900 |
|
CDLF85-20-2 |
30 |
85 |
11 |
2900 |
|
CDLF85-20 |
41 |
85 |
15 |
2900 |
|
CDLF85-30-2 |
52 |
85 |
18.5 |
2900 |
|
CDLF85-30 |
64 |
85 |
22 |
2900 |
|
CDLF85-40-2 |
75 |
85 |
30 |
2900 |
|
CDLF85-40 |
86 |
85 |
30 |
2900 |
|
CDLF85-50-2 |
98 |
85 |
37 |
2900 |
|
CDLF85-50 |
110 |
85 |
37 |
2900 |
|
CDLF85-60-2 |
122 |
85 |
45 |
2900 |
|
CDLF85-60 |
134 |
85 |
45 |
2900 |
|
CDLF120-10 |
18.5 |
120 |
11 |
2950 |
|
CDLF120-20-1 |
34.5 |
120 |
18.5 |
2950 |
|
CDLF120-20 |
40 |
120 |
22 |
2950 |
|
CDLF120-30 |
61 |
120 |
30 |
2950 |
|
CDLF120-40-1 |
76 |
120 |
37 |
2950 |
|
CDLF120-50-1 |
97 |
120 |
45 |
2950 |
|
CDLF120-60-1 |
118 |
120 |
55 |
2950 |
|
CDLF120-70 |
145 |
120 |
75 |
2950 |
|
CDLF150-10-1 |
12.5 |
150 |
11 |
2950 |
|
CDLF150-10 |
18.5 |
150 |
15 |
2950 |
|
CDLF150-20-1 |
35 |
150 |
22 |
2950 |
|
CDLF150-30-2 |
49 |
150 |
30 |
2950 |
|
CDLF150-30 |
63 |
150 |
37 |
2950 |
|
CDLF150-40-1 |
77 |
150 |
45 |
2950 |
|
CDLF150-50-2 |
92 |
150 |
55 |
2950 |
|
CDLF150-60 |
130 |
150 |
75 |
2950 |
